Voigtländer Vitomatic IIa

Blog, Built To Last

Brand: Voigtländer
Model: Vitomatic IIa
Produced: 1960
Type: Rangefinder
Format: 35mm
Lens: fixed, Voigtländer Color-Skopar 50mm f / 2.8
Exposure: Manual, built in light meter
Focus: Manual rangefinder
ISO: 12-800 manual setting
Flash: PC Socket

Ah, so the needle should go inside the circle!

Voightlander_Vitomatic_IIa_16

The light meter window near the shutter release button

No, it’s not porn, i’m talking about a light meter, and it is the way in which, as a child, I learned how to do properly exposed images.

The lens of the Vitomatic IIa is excellent in sharpness and in color rendering, it is a Voigtländer and therefore is a guarantee. The lightmeter is pretty accurate, and you can see it inside the viewfinder and on a little window located at the top of the camera (so you can make adjustments without taking the camera to your eye). The meter indicator is composed by a needle, activated by the amount of light present in the scene, and by a circle that moves along with the aperture dial. To obtain the correct exposure the circle should overlap to the needle. Simple as eating candies, for a beginner 😉

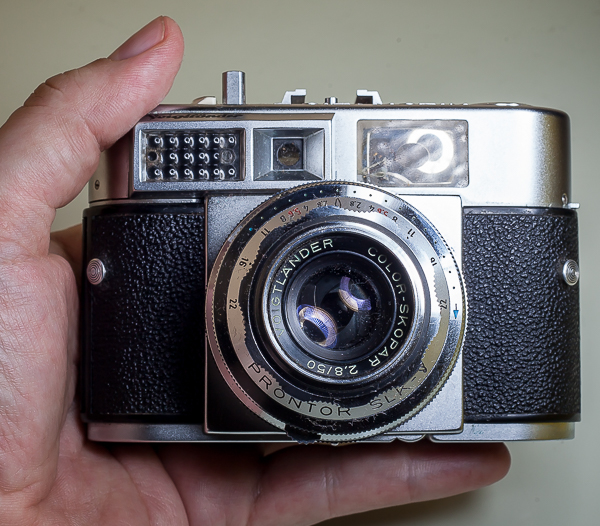

Voightlander_Vitomatic_IIa_09All adjustments are made through the rings on the lens: time, aperture, focus, iso and flash, for which there is a plug for the PC cord, in fact the machine only has an accessory shoe.

voightlander_vitomatic_iia_zf

The focusing “automation” simbols

The focus is achieved through the rangefinder, ie in the center of the viewfinder there is a circular area where we see what we are framing doubled: turn the focus ring until the two images match up (for the subject you’d like to have in focus).

Continuing the discussion about the focus this camera has some sort of “automation”: on the lens there are two red symbols, a triangle and a circle, which indicates two focus distances which guarantee a large depth of field.
This can be really useful when shooting moving subjects or when you need to shoot rapidly such in street and candid photography.
Here below the diagram indicating the adjustments for this “zone focusing system”

dof-voigtlander-1

I have a love-hate relationship with this camera. I love it because it is my father’s camera and the one that I used to learn how to shoot. I also love the opportunity to recalibrate the exposure without having to put the eye on the viewfinder. The lens gives beautiful and sharp images.
But it has a few things that I consider to be flaws and which are quite annoying for me: first of all it is very heavy, about 800g, it is really uncomfortable to carry around! Then, in situations where there’s strong lights and in backlight, the rangefinder becomes almost unusable, is really hard to see the second image superimposed.
The last thing, and this is something related to my personal tastes, is that I prefer more wide lenses, 50mm are just too much!
